Gas Analyzer: GEM5000

GEM5000 Complete Package Includes: Instrument, hoses, heavy duty water trap filter, soft case, A.C. battery charger, electronic manual accompanies software, LANDTEC System Gas Analyzer Manager (LSGAM) software, USB download cable and hard-case. Reads: Methane, Carbon Dioxide, Oxygen, temperature (when used with optional probe), atmospheric pressure, differential pressure and calculates gas flow. The GEM5000 is also suitable for Enhanced Monitoring for carbon monoxide (CO) per Alternative Method 143. NAV and Plus model packages also include more features such as GPS and additional gas measurements
Request a quote
Product Description
Specification
Applications
Downloads
Product Description
add remove

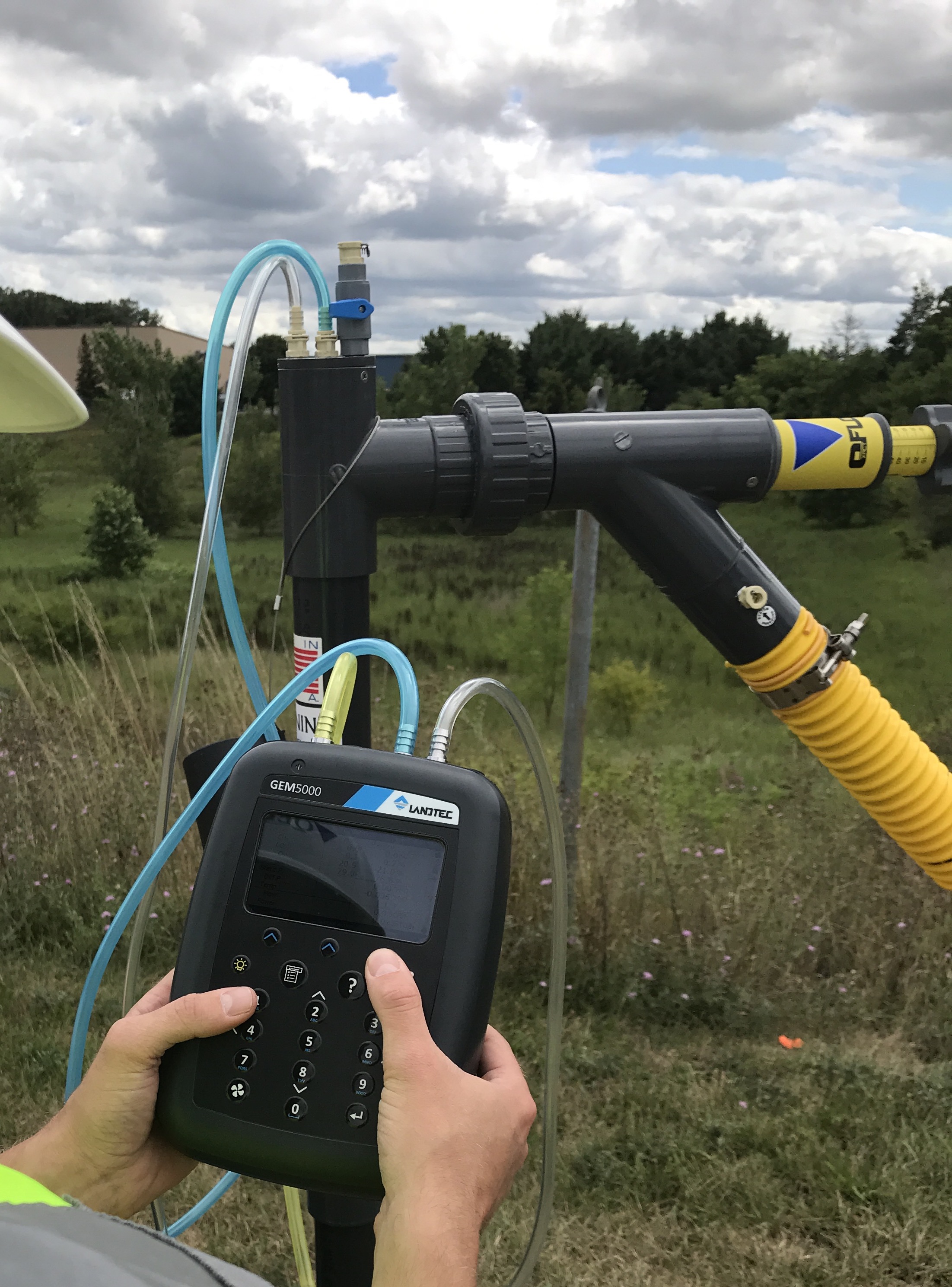

The Next Generation of GEM™ Instrument The GEM5000 is designed specifically for use on landfills to monitor Landfill Gas (LFG) Collection & Control Systems. The GEM5000 is also suitable for Enhanced Monitoring for carbon monoxide (CO) per Alternative Method 143. The GEM5000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas with options for additional analysis.

Key Specifications
  • Measures % CH4, CO2 and O2 Volume, static pressure and differential pressure
  • Suitable for Enhanced Monitoring for carbon monoxide (CO) per Alternative Method 143.
  • Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)
  • High Accuracy and Fast Response Time
  • Lighter and More Compact
  • Annual recommended factory service
  • Certified intrinsically safe for landfill use
  • Calibrated to ISO/IEC 17025
  • Three-year warranty
Benefits
  • Designed specifically for use on landfills to monitor landfill gas (LFG) extraction systems, flares, and migration control systems.
  • No need to take more than one instrument to site
  • Can be used for monitoring subsurface migration probes and for measuring gas composition, pressure and flow in gas extraction systems
  • The user is able to set up comments and questions to record information at site and at each sample point
  • Ensures consistent collection of data for better analysis
  • Streamlined user experience reduces operational times
Specification
add remove
Key Specifications
  • Temp Range: 14 - 122F ((-10 - 50C)
  • Operating Pressure: -100 in. H2O, +100 in. H2O (-250mbar, +250mbar)
  • Relative Humidity: 0-95% non condensing
  • Barometric Pressure: ± 14.7 in.Hg (±500mbar) from calibration pressure
  • Battery Life: Typical use 8 hours from fully charged
  • Charge Time: Approximately 4 hours from complete discharge
Applications
add remove
Gas Analyzer: GEM5000 Applications
Anaerobic Digesters at Farms

Water Recovery Facilities

Breweries and Food Processing

Methane Recovery

Waste Water

Enhanced Monitoring for carbon monoxide (CO) per Alternative Method 143.

Downloads
add remove
Gas Analyzer: GEM5000 Downloads
Product Manuals & Drawings
Technical Papers
Software
Download Selected Files
Download All Files

Certifications

ATEX and CSA certified

Product Support

Need support for the Gas Analyzer: GEM5000?

Related Products

Portable Gas Analyzer: GA5000

PORTABLE GAS ANALYZER FOR LANDFILLS AND CONTAMINATED LAND

LANDTEC BIOGAS5000

The BIOGAS5000 handheld analyzer is the idea field instrument for anaerobic digester gas analysis at farms, water reclamation facilities and food processing plants.

Surface Emissions Monitor for Landfill Compliance

With patented LASER technology, the SEM5000 Portable Methane Detector is the ideal instrument for surface emissions monitoring, reporting and detecting potential leaks at wellhe...

Huberg Metrex: Natural Gas Leak Detector
