Torpedo Pump G1275

CLAW THROUGH THE TOUGHEST SITUATIONS WITHOUT FAIL
Product Description
Specification
Downloads
Product Description
add remove

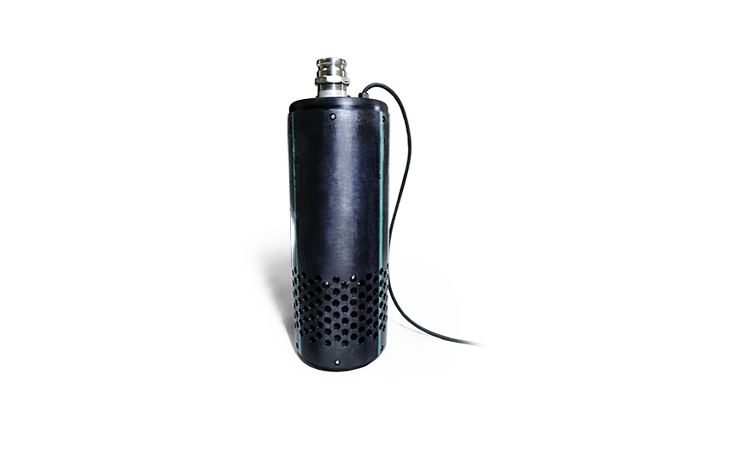

QED G1275 slurry and solids pumps are built to handle conditions which make other pumps fail. Constructed of stainless steel and fitted with heavy duty bearings and seals, the G1275 pump is a large body pump with the ability to create a powerful stirring motion in the influent stream to allow slurries and solids to pass through. The hardened, high chrome impeller assembly can easily pass solids which would stall lesser pumps in their tracks.

Key Specifications
  • Cast iron agitator
  • Hardened Impeller with powerful stirring action
  • HDPE encapsulated body, stainless steel water jacket and polymer power cable
  • Smooth pump body design
  • Powerful 5 HP (3.8 kw) motor
Benefits
  • Easy pumping of silt, slurries and solids
  • Abrasion resistance for long life in aggressive applications
  • Suitable for corrosive environments
  • Slides easily in pipe without the need for wheels or other guide devices
  • Strong enough to pump silt, slurries and solid contaminants
Specification
add remove
Key Specifications
  • Case dimensions: 34" x 13.25" (865 x 335 mm)
  • Weight: 115 lbs (53 kg)
  • Maximum head: 90 feet (23 meters)
  • Maximum flow: 250 gpm (945 lpm)
  • Pump Power: 5 hp (3.8 kw)
  • Pump outlet: 3 inches ID (80 mm)
  • Solids pumping capacity: 0.5 inches (12 mm)
