Exclusive vortex inducing auger

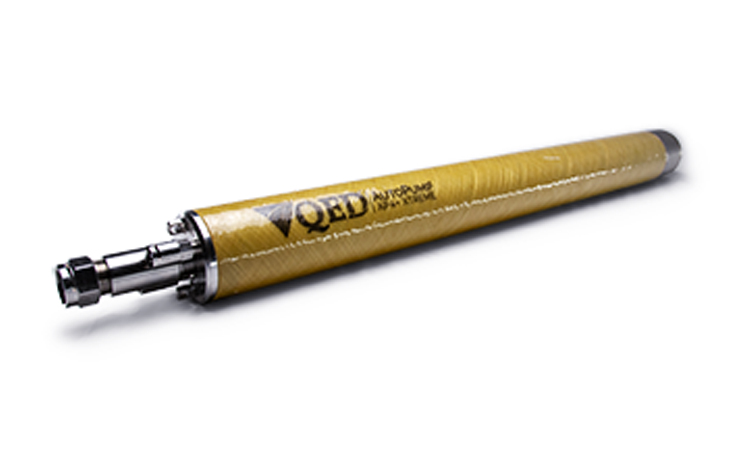

AutoPump® Ultra Xtreme

The AutoPump Ultra Xtreme combines exclusive technologies to create a self cleaning design which keeps your pumps in the ground longer. Non-stick surfaces and internal agitation inhibit sludge buildup, extending service intervals and keeping clean-up to a minimum. Available in 4 and 4.5 inch sizes to match pumping requirements.
play_circle_outline
Product Description
Specification
Applications
Downloads
Product Description
add remove

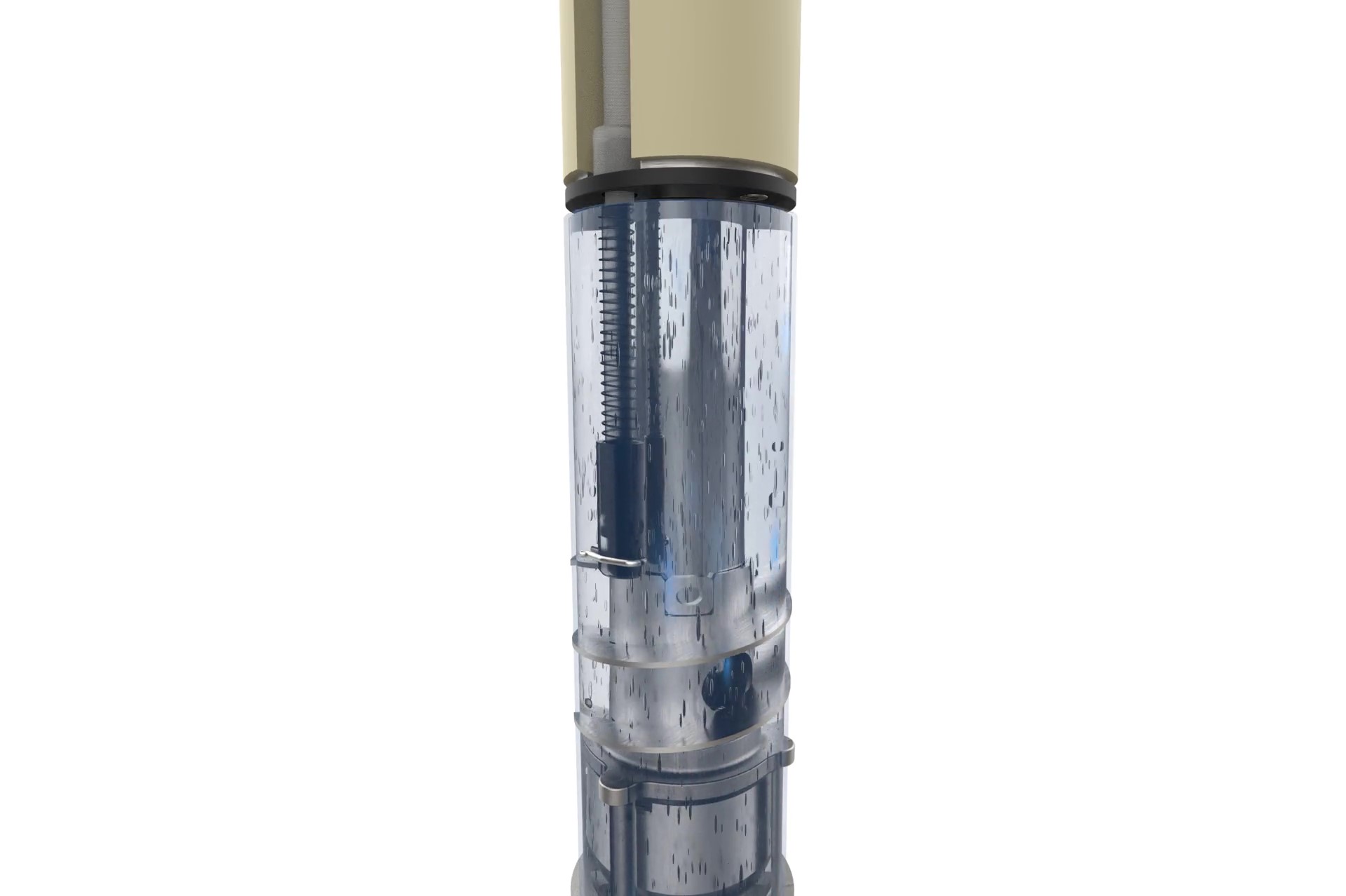

QED has created the first self cleaning landfill liquid extraction pump designed to operate in the most extreme landfill conditions. The new AutoPump Ultra Xtreme pump utilizes the unique, non-stick coating and polished metal internal components of the AP4 and AP4.5 Ultra and Ultra High Temperature pumps with the exclusive AutoPump Xtreme auger. The auger creates a spinning motion to the liquid to help keep particles suspended and moving. This field proven vortex action results in a additional ten-fold improvement in pump "in the ground" times. The combination of AutoPump Ultra coating and continuous internal scouring means a reduction of over 70% of time spent cleaning the pump internal components. The AutoPump Xtreme lets you redirect important labor resources to more critical tasks. The new Xtreme is available as the Short, Bottom Loading model of either the standard AutoPump Ultra pump or Ultra High Temperature pump (for temperatures up to 250F / 120C).

Key Specifications
  • 316 stainless-steel vortex inducing auger
  • Proprietary non-stick finishes on float and discharge tube to reduce solids buildup
  • 100% air-powered operation
  • Corrosion-resistant 316-grade stainless steel metallic parts
  • Reliable air control mechanism
  • Functions under positive or negative (vacuum) pressure environments
  • Does not require clean dry air to function properly and pumps particles up to 1/8 inch in diameter
  • The AutoPump air valves can pass 90 weight oil without fouling.
  • 5 Year Warranty
Benefits

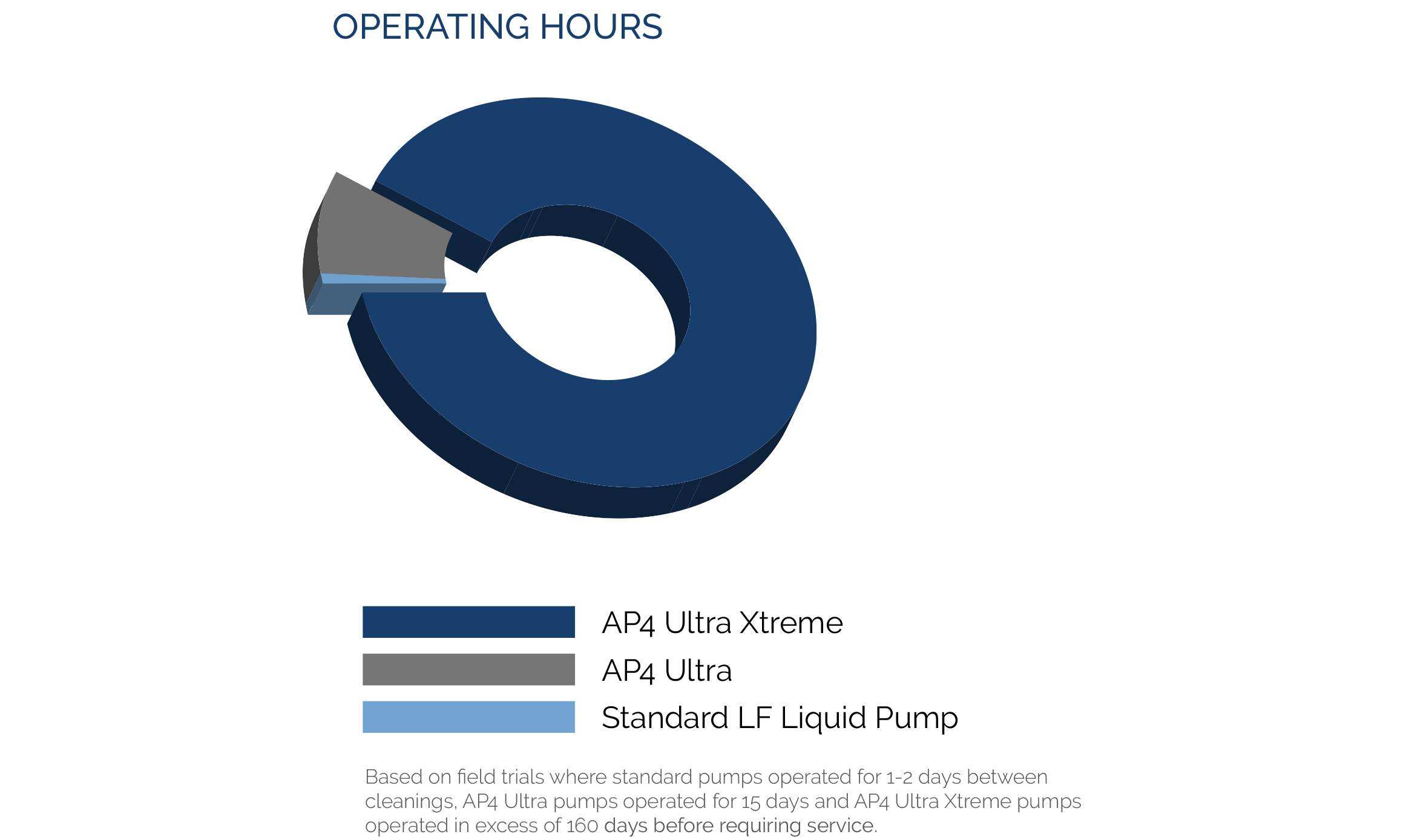

  • Field tests have shown that the AutoPump® Ultra Xtreme will last up to 10 times longer between service events over the industry leading AP4 Ultra. Tested in the most severe applications
  • Cleans in up to 70% less time than control group, determined by field tests
  • Simple disassembly with no fasteners and no cotter pins
  • Reduced service requirements redirects labor to other tasks
  • Increase landfill gas extraction rates.
  • Reduced risk of liquid leakage through liners and side slope failures.
  • Lower rates of odors and non-methane organic compounds
  • AutoPumps require no surface timer-based controllers, bubblers or sensors in the well to operate.
Specification
add remove
Key Specifications
  • Available as Short, Bottom Loading Ultra or Ultra High Temperature models
  • Exclusive auger and non-stick internal components create a self-cleaning action
  • Proprietary finishes reduce buildup and extend the time between cleaning
  • Unique construction resists clogging by solids, pumps longer without needing cleaning
  • Available in standard (180F / 80C) and High Temperature (250F / 120 C) operating temperatures
Applications
add remove
AutoPump® Ultra Xtreme Applications
Landfill

Mining

Industrial Sites

Oil Refineries and Petrochemical

DOD / DOE Sites

Remediation Sites

Downloads
add remove
AutoPump® Ultra Xtreme Downloads
Product Data Sheets & Specifications
Specs and Drawings
Product Manuals & Drawings
Related Downloads
Download Selected Files
Download All Files

Product Support

Need support for the AutoPump® Ultra Xtreme?

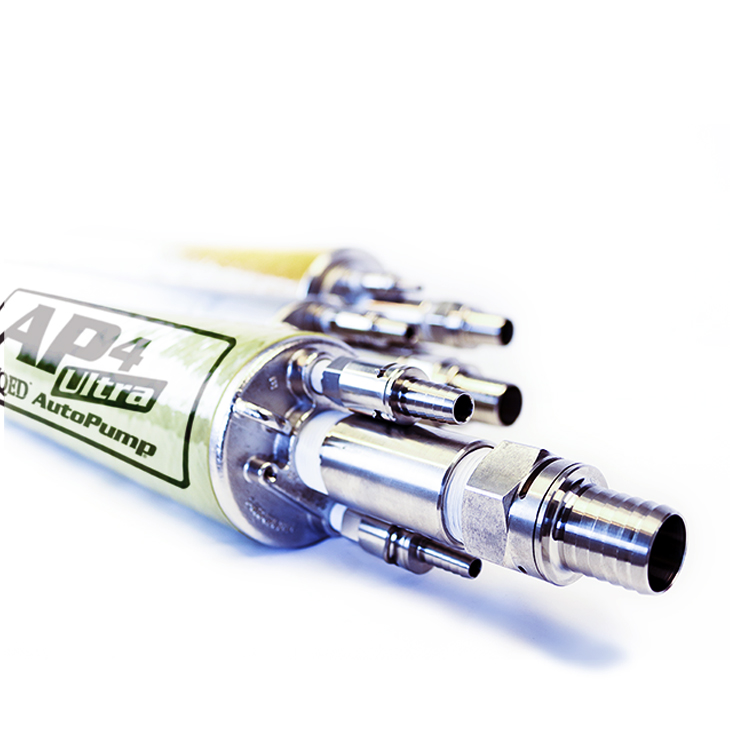

AutoPump AP4 Ultra

Air-powered AutoPumps, proven worldwide at thousands of remediation sites, are the No. 1 choice of professionals based on reliability, durability, performance range and technica...

Automatic Air Pump AP4 Ultra - High Temperature

Air-powered AutoPumps, proven worldwide at thousands of remediation sites, are the No. 1 choice of professionals based on reliability, durability, performance range and technica...

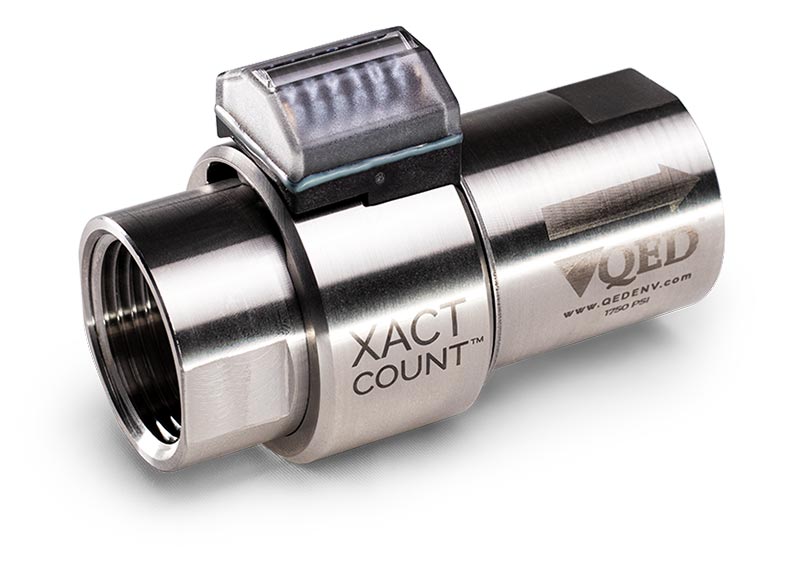

Xact Count - Pump Cycle Counter

Pneumatic Pump Cycle Counter

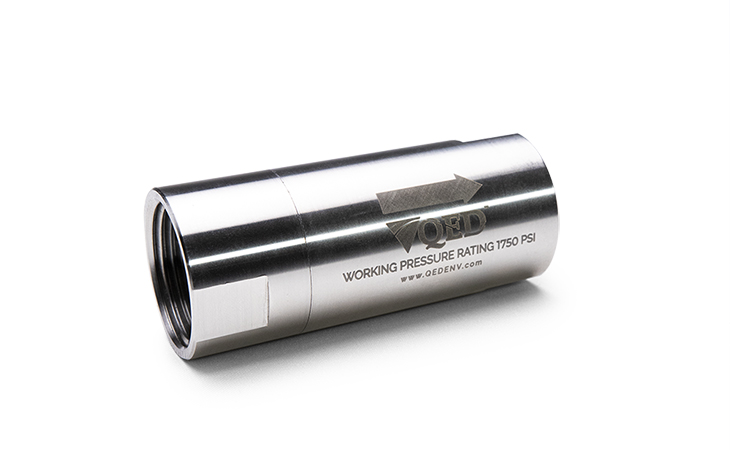

Stainless Steel Check Valve
