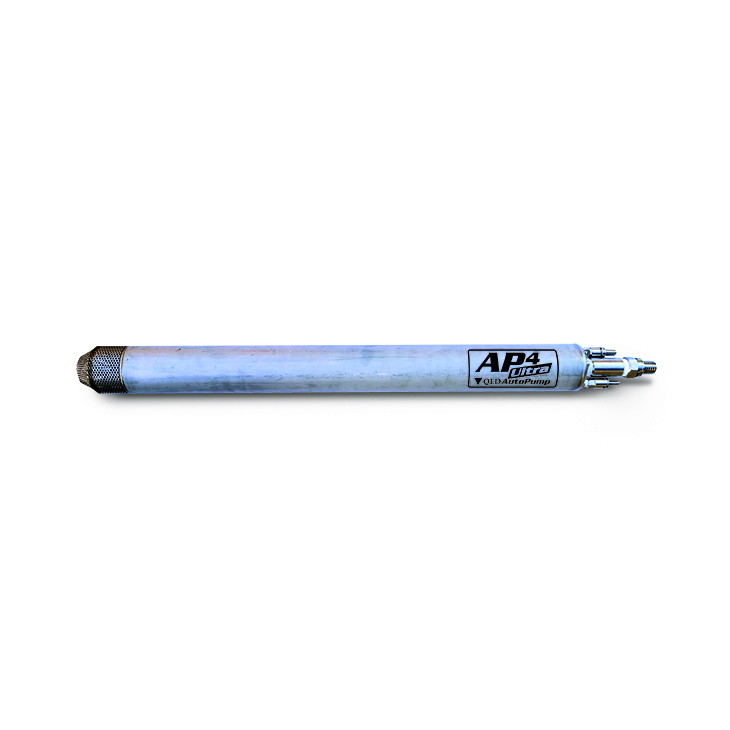

Automatic Air Pump AP4 Ultra - High Temperature

The new High Temperature AP4 Ultra builds upon the established AutoPump® system, which has been the industry leader for over 30 years, and includes QED's unmatched customer service. QED’s special AutoPump® AP4 Ultra models are available to pump fluids up to 250 ºF (120ºC)
Product Description
Specification
Applications
Downloads
Product Description
add remove

QED’s special AutoPump® AP4 Ultra models are available to pump fluids up to 250 ºF (120ºC), and are already proven in service. These high temperature pumps use the highly reliable AutoPump core design and proprietary Ultra non-stick finishes, but add specialized materials of construction to extend the upper temperature limit. The end result is a proven pump that delivers long-term durability and withstands high liquid temperatures.

Key Specifications
  • • Proprietary non-stick finishes on float and discharge tube to reduce solids buildup
  • • 100% air-powered operation
  • • Corrosion-resistant 316-grade stainless steel metallic parts
  • • Reliable air control mechanism
  • • Temperature ratings up to 250 °F, making it ideal for high temperature applications.
  • • ATEX Certified
  • • Functions under positive or negative (vacuum) pressure environments.
  • • Does not require clean dry air to function properly and pumps particles up to 1/8 inch in diameter.
  • • The AP4+ air valves can pass 90 weight oil without fouling.
  • • Able to pump products with a specific gravity as low as .72
  • • 5 Year Warranty
Benefits
  • • Increase landfill gas extraction rates.
  • • Reduced risk of liquid leakage through liners and side slope failures.
  • • Lower rates of odors and non-methane organic compounds.
  • • Field tests have shown that the AutoPump® AP4 & AP4.5 Ultra will last up to 10 times longer between service events. Tested in the most severe applications.
  • • Cleans in up to 50% less time than control group, determined by field tests
  • • Simple disassembly with no fasteners and no cotter pins
  • • AutoPumps require no surface timer-based controllers, bubblers or sensors in the well to operate.
Specification
add remove
Key Specifications
  • Temperatures up to 250 ºF
  • Proprietary finishes reduce buildup and extend the time between cleaning.
  • Special non-stick finishes require less then half the time to clean than traditional pumps.
  • All metallic parts are 316-grade SS for greater corrosion resistance.
  • No fasteners; no cotter pins. Exhaust seat is easy to adjust.
  • Available self-cleaning AutoPump AP4 Ultra High Temperature Xtreme short, bottom loading version
Applications
add remove
Automatic Air Pump AP4 Ultra - High Temperature Applications
Landfill

Oil Refineries and Petrochemical

Mining

DOD / DOE Sites

Industrial Sites

Remediation Sites

Downloads
add remove
Automatic Air Pump AP4 Ultra - High Temperature Downloads
Product Data Sheets & Specifications
Specs and Drawings
Product Manuals & Drawings
Related Downloads
Download Selected Files
Download All Files

Certifications

ATEX
